Aircraft Manufacturer:

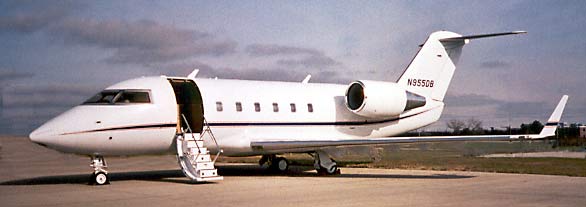

Canadair Challenger

Aircraft Model:

CL-600-2A12 (601-1A)

Mfg's. Serial Number:

3044

Registration Number:

N955DB

Date of Manufacture:

September 12, 1985

Data as of:

August 2001

Percentage of Interval Remaining

Time Remaining to    100 hr / Inspection:

  100.0 hrs

100.00 %

Time Remaining to    300 hr / Inspection:

  300.0 hrs

100.00 %

Time Remaining to  1200 hr / Inspection:

  676.9 hrs

  56.14 %

Time Remaining to  2400 hr / Inspection:

1876.9 hrs

  78.20 %

Time Remaining to  4800 hr / Inspection:

1957.9 hrs

  40.79 %

Time Remaining to  9600 hr / Inspection:

1957.9 hrs

  20.39 %

Time Remaining to   12 mo /  Inspection:

10.5 mos

  87.78 %

Time Remaining to    24 mo / Inspection:

22.7 mos

  94.58 %

Time Remaining to    36 mo / Inspection:

34.9 mos

 96.94 %

Time Remaining to    48 mo / Inspection:

34.9 mos

 72.70 %

Time Remaining to    60 mo / Inspection:

47.6 mos

 79.28 %

Time Remaining to  120 mo / Inspection:

47.6 mos

 39.22 %

Max Taxi Weight:

43,250 lbs

Max Takeoff Weight:

43,100 lbs

Max Landing Weight:

36,000 lbs

Max Zero Fuel Weight:

29,500 lbs

Operating Empty Weight:

26,386 lbs

Useful Load:

16,714 lbs

Total Fuel Capacity:

16,665 lbs   /  2,451 USG

Aux Tankage:

  6,774 lbs   /  1,011 USG

Position:

Left

Right

Mfg's. Serial Number:

GE-E-350-163

GE-E-350-164

Model: Turbofan

CF34-3A

CF34-3A

Hours  Since New:

7,499.8

7,563.1

Cycles Since New:

4,689

4,776

Hours Remaining to Next   100 Inspection:

100    100%

100    100%

Hours Remaining to Next   300 Inspection:

300    100%

300    100%

Hours Remaining to Next   600 Inspection:

600    100%

600    100%

Hours Remaining to Next 3000 HSI Inspection:

1,370.2   45.7%

1,370.2   45.7%

Hours Remaining to Next 6000 Overhaul:

4,370.2   72.8%

4,370.2   72.8%

Mfg's. Serial Number:

P-209

Mfg’s. Part Number: Series 15

3800050-5-1

Manufacturer:

Airesearch

Model:

GTCP36-100E

Hours  Since New:

4,940

Hours Remaining to Next    300 hr Inspection:

 300        100%

Hours Remaining to Next    600 hr Inspection:

 600        100%

Hours Remaining to Next  1200 hr Inspection:

1200        100%

Hours Remaining to Next  2100 hr HSI Inspection:

2100        100%

Mfg's. Serial Number:

DCL 149/85

DCL 146/85

DCL 071.81.85

Mfg's. Part Number:

6100-11

6100-12

601-85008-1

Hours Since New:

7,567.1

7,567.1

7,567.1

Cycles Since New:

4,676

4,676

4,676

Cycles Rem. LG Useful life:

45,324

45,324

6,937

Pax Seating:

9-pax configuration

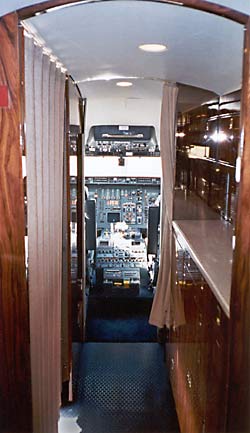

Galley:

Forward wood veneer with gold plated fixtures

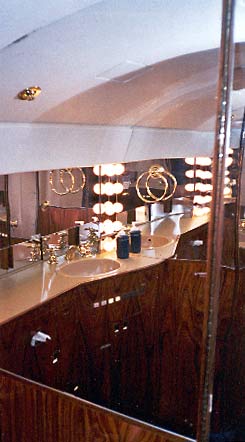

Lavatory:

Aft - flush toilet, full vanity, gold plated fixtures

Headliner:

Ultrasuede in light beige

Floor Covering:

Loncoin II #521 Sapphire Blue carpet

Cockpit:

Cockpit Seats Blue/Gray leather with Sheepskin

Cabinetry & Trim:

Cabinetry is wood veneer and fabric/leather sidewalls

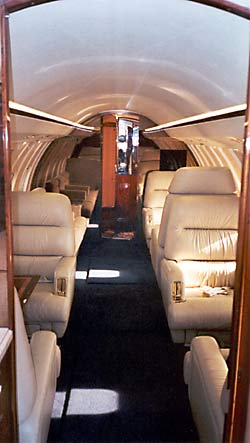

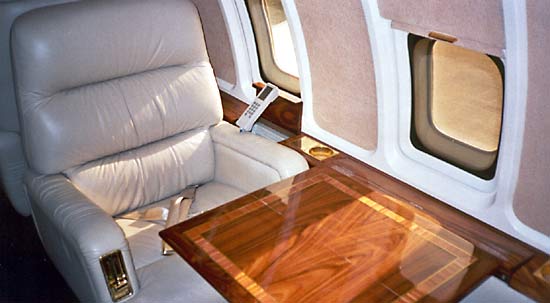

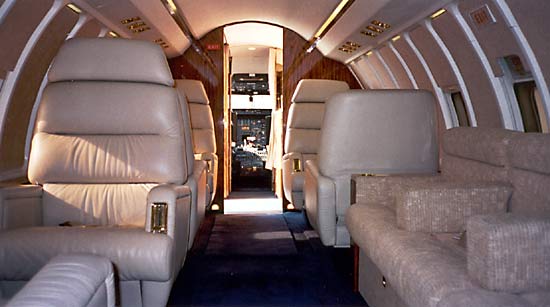

Cabin Seats:

(6) captain chairs (tuffed beige leather) and
(1) three place divan, (1) jumpseat

(2) VHF Comms

Collins VHF-22B

(2) Navs.

Collins VIR-32

(2) ADF

Collins ADF-60A

(2) DMEs

Collins DME-42

(2) EFIS

Sperry EDZ-803

(1) MFD

Sperry MDZ-803

(1) Radar

Sperry (Primus 800) WR-800

(2) Transponders

Bendix/King MTS-67A Mode S

(1) Autopilot

Sperry 600

(2) Radio Altimeter

Collins ALT-55B

(2) FMS

AlliedSignal GNS-X LS

(2) Air Data Computer

Honeywell AZ-800

(2) Laser Inertial Navigation System

Honeywell HG1075AB

(2) HF Comms

Collins HF-230 / SECAL

(1) Magnastar

Air Radio Telecommunication System

(1) TCAS

Bendix/King CAS 67A TCAS II

(1) CVR

Fairchild A-100

(1) FDR

Fairchild  FA-542-701

(1) AFIS

Global

(1) Safe Flight

Wind Shear Warning System

(1) RVSM / 8.33 Spacing

Collins
